The DS B automatic level are designed for high precision of surveying applications,such as construction project,engineer of mine,road
and bridge etc.
DS B features include:
*Magnetic damping compensator with heavy pendulum,super stable damping effect and high precision of setting accuracy,robust
and easy to use.
*Large roof prism,super clear imaging,minimum focusing distance<0.3m.
*Compensator locking system to protect the compensator better during transportation.

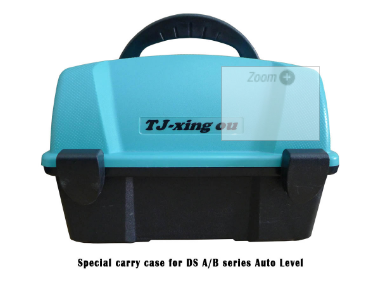

*Professional package to protect the instrument well even in long distance transportation.
Item No. | DS-B32 |
Compensator Type | magnetic |
Magnification | 32X |
Standard Deviation for 1km Duble-Run Levelling | 1.0mm |
Objective Aperture | 40mm |
Field of View | 1°20' |
Shortest focussing distance | 0.3m |
Setting Accuracy | ±0.3'' |
Compensator Working Range | ±15' |
Telescope | Erect |
Sensitivity of buble | 8'/2mm |
Multiplication Constant | 100 |
Addition Constant | 0 |
Circle Graduation | 1°or 1 gon |
Net weight | 1.8kg |
Water resistance | IPX4 |
Centre size of tripod | M16 or 5/8'' |
